Beschreibung

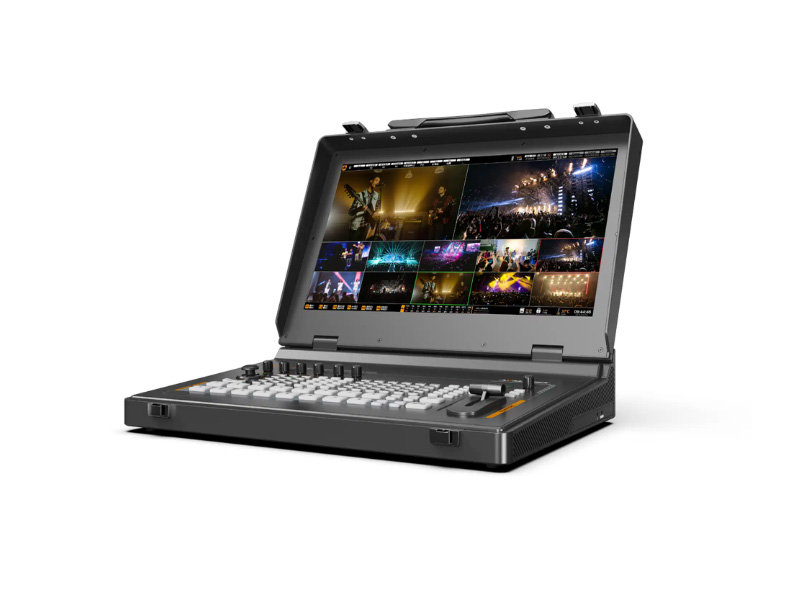

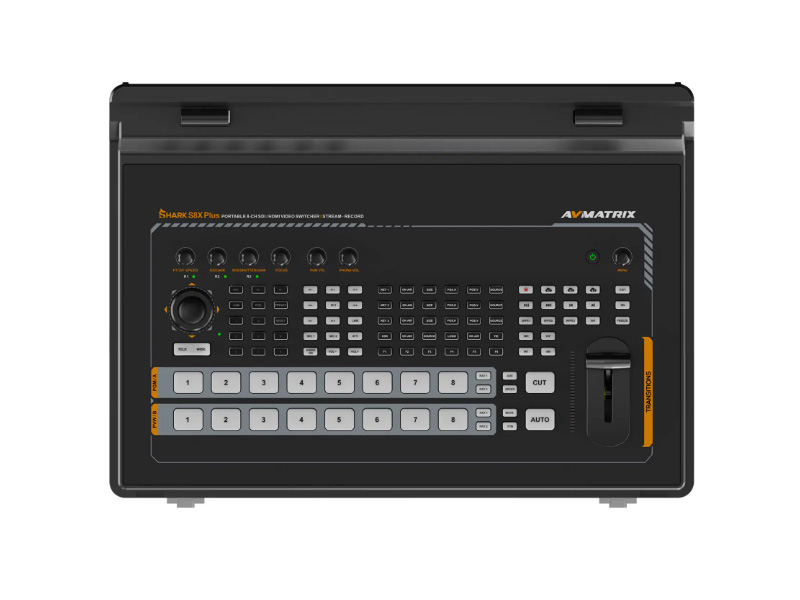

SHARK S8X PLUS, featuring a 17.3-inch FHD IPS switcher, supports 8-ch 3G-SDI and 2-ch 4K HDMI input, with frame synchronization output and an AUX input (supporting video player, UVC, streaming, NDI). Outputs include 2 HDMI, 4 SDI, and 1 HDMI multiview with customizable output source and format option. It supports RTMP(S)/SRT/RTSP/NDI streaming, recording and playback via USB/SD card/2.5-inch SATA, and UVC lossless capture. The switcher offers chroma key, luma key, customizable PIP×3, POP, DSK, and LOGO overlay. For Audio function, it provides two XLR/TRS balanced inputs with 48V phantom power and a 3.5mm stereo input, supporting mixing of 8 embedded video audio channels and two external audio inputs. It also features 8-channel PTZ control with rate, preset, focus control, and manual/auto exposure and color control. The switcher supports macro script functionality for effortless automation of operations a, meeting professional live streaming and production needs.

Für eine detaillierte Produktbeschreibung und technische Spezifikationen siehe Datenblatt unten

Features

• 17.3-inch FHD IPS display

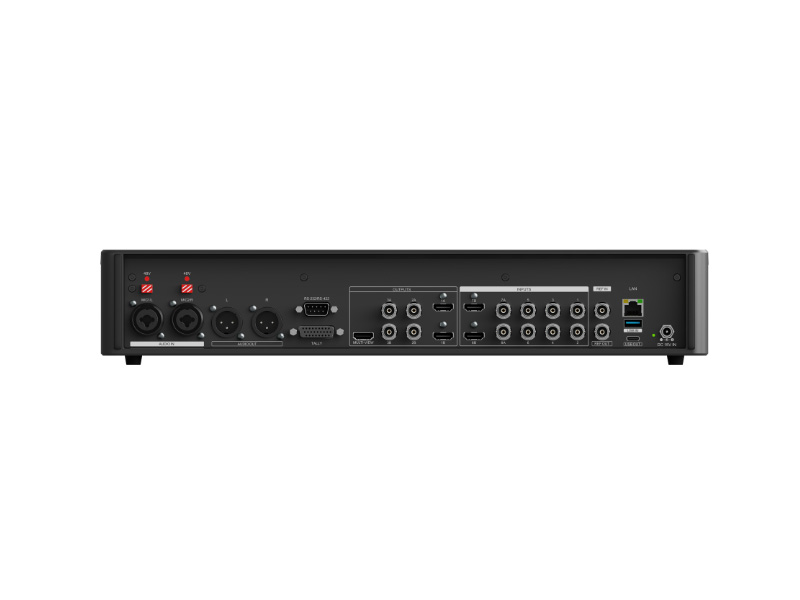

• Inputs: 6x 3G-SDI and 2x SDI/4K HDMI, 1x BNC REF, 1x AUX (internal interface)
• Multi-view source routing function, supporting the definition of any input signal to any specified view
• AUX input: Video playback/UVC CAM/network pull stream/NDI
• Outputs: 2x HDMI(A/B) PGM (configurable), 4x SDI(A/B) PGM (configurable), 1x HDMI MV (source configurable), 1x REF output
• Streaming: RTMP(S)/SRT/RTSP/NDI(Optional)
• Recording and playback: USB flash drive/SD card/2.5-inch SATA
• USBC port for UVC lossless capture
• Chroma key, luma key, custom position and size PIPx3, POP, DSK, LOGO overlay
• Transition: T-bar/Auto/Cut
• Professional XLR audio input and output, supporting 48V phantom power
• Mixer: 8x input video embedded audio & 2x XLR/TRS balanced & 3.5mm stereo input; 3.5mm stereo & XLR balanced output
• 8-channel PTZ control, supporting PTZ speed setting, preset position setting and calling, automatic/manual white balance, automatic/manual color and automatic/manual focus control
• Macro script function, supporting macro recording, playback and user editing of macro scripts
• Tally GPIO port
