Beschreibung

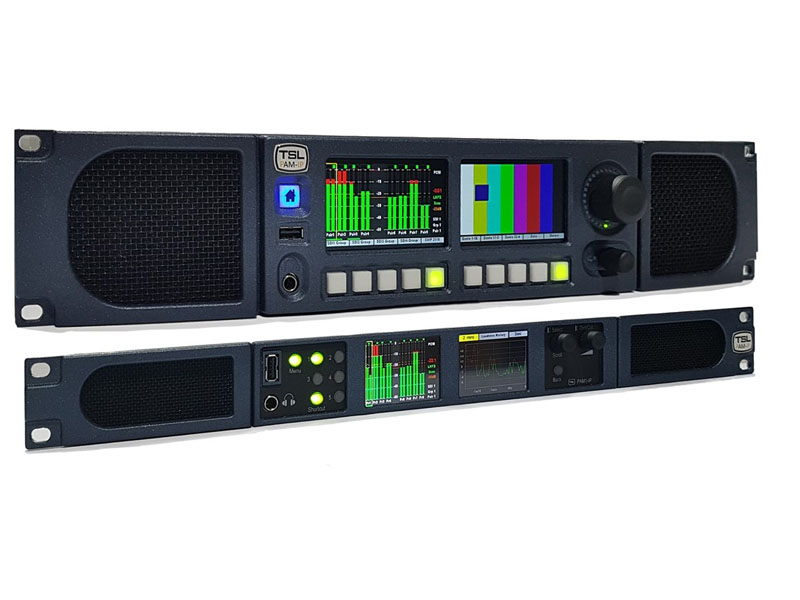

Developed specifically to address the requirements of customers monitoring uncompressed SMPTE 2022-6 and SMPTE 2110 sources, the PAM-IP features 2 x 10Gig/E interfaces, enabling direct connection to redundant IP networks.

Customers looking to monitor IP video and audio sources require an intuitive and familiar user interface along with a straightforward method of operation. The PAM-IP also features Primary and Secondary Dante ports, SDI, AES and Analogue connections for use with traditional infrastructures.

• Video Confidence Monitoring - view ST-2022-6, ST-2110-20 and SDI video content directly on the front panel of the PAM-IP or via its dedicated SDI output router
• Comprehensive Loudness Monitoring - check loudness levels for ST-2022-6, 2110-30, SDI, AES and Analogue audio sources
• Dolby Decode - monitor Dolby E®, Dolby Digital® and Dolby Digital Plus® audio sources, complete with comprehensive Metadata analysis
• External Control Protocols - Customers can manage PAM-IP ST-2022-6 and ST-2110 subscriptions using In-Band or Out-of-Band control protocols

Features

• ​Same feature set and operation as PAM2 MK2
• Now supports IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analogue Audio connections
• Now supports Dante Audio over IP (optional extra)
• Monitoring and decoding of Dolby E®, Dolby Digital® and Dolby Digital Plus® (including Metadata)
• Loudness Monitoring – EBU (R128) and ATSC (A85)
• 3G/HD/SD-SDI Video Source Monitoring directly on Front Panel
• User Programmable Presets
• Remote Control (API and GPI)
• Web-GUI
