Description

The pioneering and proven Selenio 6800+™ has been a popular modular signal processing platform with broadcasters around the world for well over a  decade. Available with a range of cost-effective, single-purpose modules spanning the breadth of SDI processing, distribution, video conversion and frame sync to a range of fiber optics solutions, the platform also offers audio processing capabilities.

With Selenio 6800+, products are designed with an “application-centric per module” concept that ensures straightforward system designs with lower costs, higher performance and a solution to address a variety of requirements. The platform’s high-density architecture supports up to 20 single-wide modules per 2RU frame — reducing frame count in your facility, and saving you rack space.

Whether you're handling audio, video or data, there’s an affordable and reliable Selenio 6800+ processing solution designed to meet your specific needs.

For more detailed description and product specifications, see datasheet below

Benefits

• Maximize space and cost efficiencies with high-capacity architecture in a 2RU frame
• Broad product portfolio supports a variety of applications and formats
• Fiber solutions reliably transport high-bandwidth signals over any distance with pristine quality
• Effortless setup and configuration enabled by field-proven control and monitoring options

Available Frame and Card Options

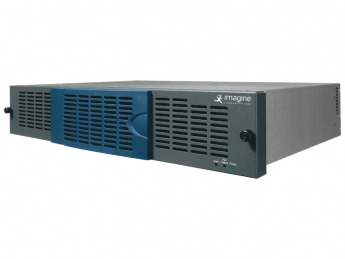

• Selenio 6800+ Frame

3 Gb/s Processing, Embedders, De-embedders

• DSFS6802+RLYD: Dual-Channel 3G/HD/SD A/V Frame Synchronizer with Relay Bypass
• ​DSFS6802+D: Dual-Channel 3G/HD/SD A/V Frame Synchronizer
• HDX6803+AO+T: Auto-Sensing HD/SD Audio De-Embedder with up to 8 AES and 8 Analog audio Outputs
• HDX6803+D: Auto-Sensing 3G/HD/SD Audio De-Embedder with up to 8 AES Outputs
• HMX6803+AI+T: Auto-Sensing HD/SD Audio Embedder with up to 8 AES and 8 Analog audio Inputs
• HMX6803+D: Auto-Sensing 3G/HD/SD Audio Embedder with up to 8 AES Inputs
• SFS6803+AO+T: 3G/HD/SD-¬Capable A/V Frame Synchronizer with Analog Audio inputs/outputs
• SFS6803+D: 3G/HD/SD-Capable A/V Frame Synchronizer

Advanced Audio

• APM6803+RLYT: Multichannel Advanced Audio Processor with Relay Bypass

Audio Conversion

• ADC6800+A4BCD: 4-Channel Audio Analog-to-Digital Converter with Delay
• DAC6800+BCA4D: AES Digital-to-Analog Audio Converters

Distribution

• AES6800+C/BD: AES-EBU Audio Distribution Amplifiers
• ARG6800+D: Analog Audio Remote Gain, Balanced
• DA-DH/DHR/6804+D: Low Power Dual 1x4 or Single 1x8 with Built-in ACO, 3G/HD/SD/ASI
• DA-H/HR/6802+S/D/DL: 1x4 or 1x8, 3G/HD/SD/ASI Distribution Amplifier
• VCA6800+D: 1x4 or 1x8, Analog Video, Clamping and Equalizing

Data/Metadata Insertion

• DMDP6802+D: Dual-Channel GPI/CC/Serial Data/SCTE104 Inserter/Extractor and VANC Bridge Module

HD Conversion, ARC

• XHD6801+DT, +UCT, +UCDT: HD/SD Up/Down/Cross/Aspect Ratio Converter with Enhanced Aspect Ratio Processing

Video Conversion

• DAS6801+D: Composite Analog A/V Decoder/Synchronizer/Embedder, Q-SEE™-Compliant
• ENC6801+D: SDI Video Encoder, Q-SEE™-Compliant

Video Over Optics

• SFP6800+D: Simple, Flexible Processing Module (SD/HD/3G/ASI,HDMI,DVI)
